Description

The Igo T 85 A is ideal for small construction sites and tight areas. The variable height telescoping lattice mast from 66 – 75 ft comes standard with the option to add three mast inserts for additional horizontal jib hook height up to 125 ft. The Model Igo T 85 A has a maximum radius of 148 feet, a height of 115 feet, tip capacity of 2750 lbs, and a maximum capacity near jib foot of 13200 lbs.

Specifications:

  • Make: Potain
  • Model: IGO T 85 A
  • Maximum Radius: 148 ft
  • Height: 115 ft
  • Tip Capacity: 2750 lbs
  • Max Capacity near jib foot: 13200 lbs

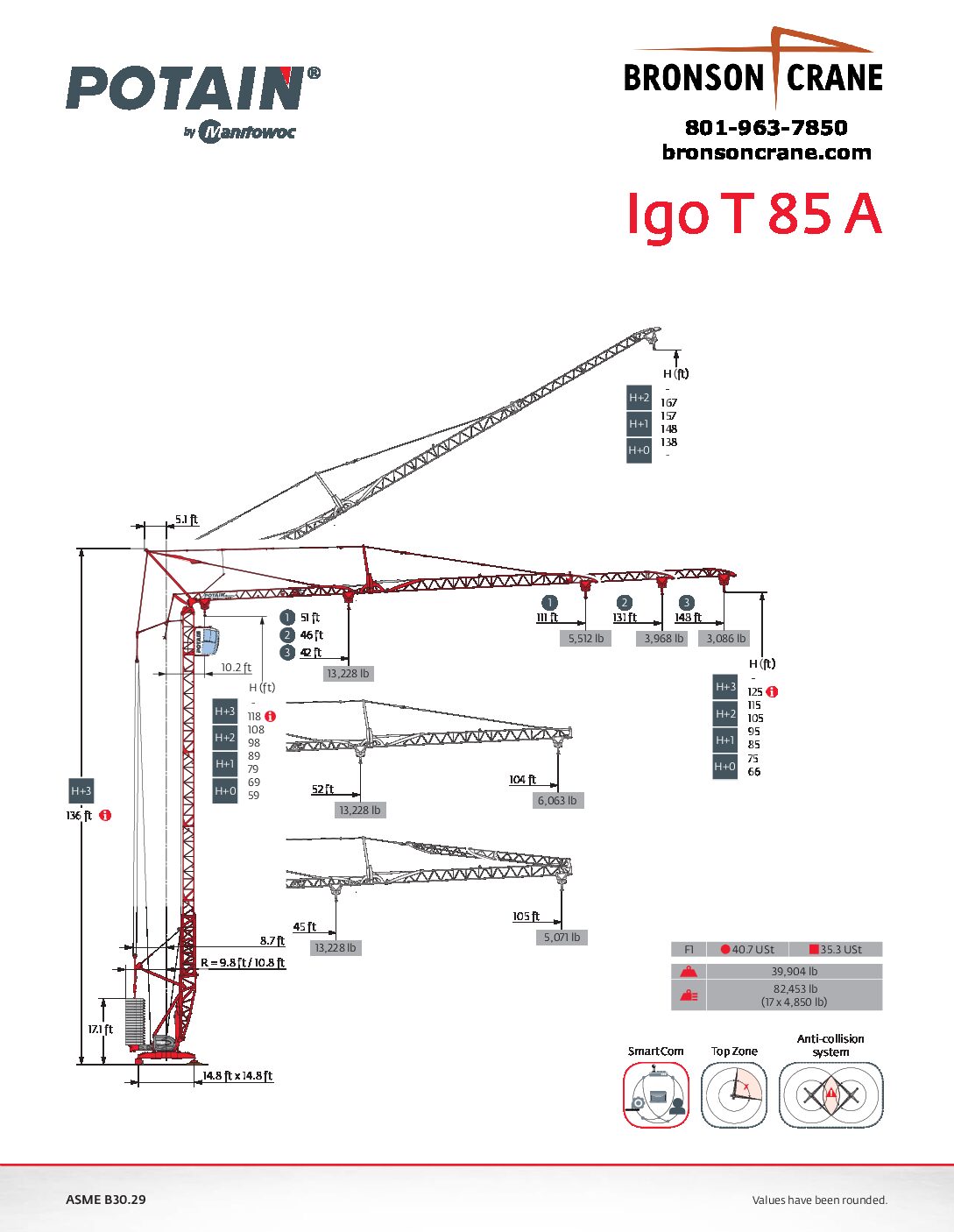

Download Data Sheet:

Features

  • 6000 kg (13,228 lb) maximum capacity
  • 1400 kg (3086 lb) capacity at 45 m (148 ft)
  • 45 m (148 ft) maximum operating hook radius
  • 51 m (167 ft) maximum hook height with 45 m (148 ft) jib set at 30°
  • 38 m (125 ft) maximum tip hook height with jib horizontal
  • Variable height lattice mast from 20 m (66 ft) to 38 m (125 ft) with optional mast inserts
  • Cab The optional UltraView cab bolts onto the crane at a fixed height. Controls are integrated into the cab and operator’s seat provides ergonomic comforts from an aerial position.
  • Optional hydraulic ballasting derrick The optional hydraulic ballasting derrick arm is removeable and controlled by the radio remote control. This derrick can be adjusted to both radii of the Igo T 85 A as well as the radius of the Igo T 70 A.
  • Remote control with indicators Standard wireless radio remote control with indicators and auxiliary control unit can be supplemented with an optional tethered joystick control unit with 30 m (98 ft) cable.
  • Mast inserts Increase your working height by up to 15 m (49 ft) with optional mast inserts. Each insert is 6 m (20 ft) and provides the operator with additional heights under hook.
  • North American Highway Axle Simplify road transport with the North American Highway Axle and adaptation kit 203. Multiple pin positions for optimal weight distribution, DOT compliance and an optional attachable 3rd axle make this an ideal solution for your transportation needs.
